Description

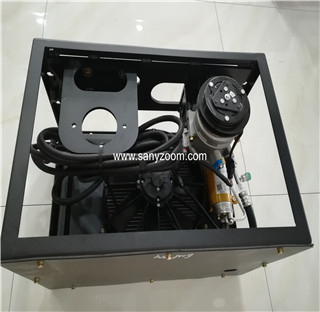

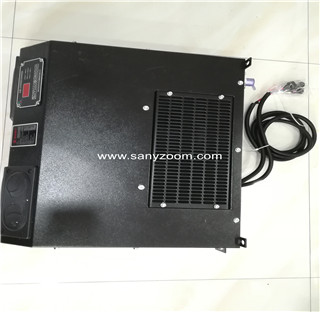

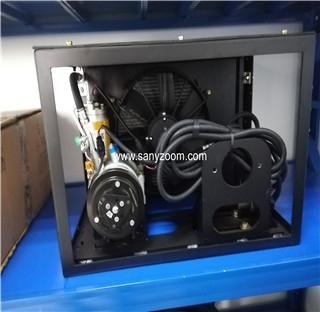

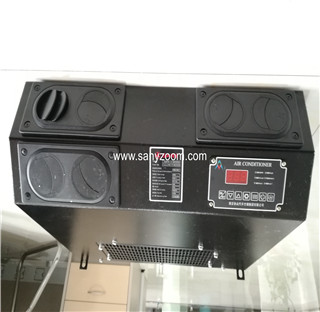

SANY Condenser fan assembly/ Condenser fan assembly for SANY Crane
Used for SANY crane:
STC120C,STC160C, STC200,STC200S,STC200C5,STC250,STC250H,STC250S,STC500,
STC500C,STC500S,STC750,STC750S，STC900, STC1000, STC1000C, STC1250, STC2200
STC250T, STC350T, STC550T, STC800T6, STC1000T；
SAC12000, SAC6000, SAC3500, SAC3000, SAC2600, SAC2200C, SAC2200, SAC1800；
SRC750, SRC550C, SRC350
Other SANY crane spare parts are also available ,
| Sr.No | Part No. | Description | English Description |
| 101 | A221000000195 | 雨刮电机总成37N-41010 | Wiper motor |
| 102 | A221000000232 | 启动马达MS3-504 | Starter Motor MS3-504 |
| 103 | A221500000220 | 关节轴承 | Joint bearing |
| 104 | A222100000599 | 安全滤芯KW3046A-0300 | safety filter KW3046A-0300 |
| 105 | A222100000600 | 空滤滤芯3046 | Air Filter Core 3046 |
| 106 | A229900003565 | 离合器助力缸CP1604EN010 | Clutch Booster Cylinder CP1604EN010 |
| 107 | A229900007292 | 传动轴F82+4－P7P8－11 | Transmission Shaft F82 |
| 108 | A229900009086 | 离合器主缸总成43271200130SG | Clutch main cylinder assembly 43271200130SG |
| 109 | A229900009213 | 风扇 | Fan |
| 110 | A229900009552 | 离合器从动盘总成EQ420B3AA0-1601200 | Clutch Driven Disc Assembly EQ420B3AA0-1601200 |
| 111 | A230101000345 | 主轴后轴承盖油封C01032 | Headstock&Rear Bearing Cover Oil |
| 112 | A230101000487 | 取力器油封FS00A1902191 | Power take-off oil seal |
| 113 | A230101000488 | 油封21036 | oil seal 21036 |
| 114 | A230106000352 | 汽车多楔带 | Automotive multi-wedge belt |
| 115 | A240500000075 | 电喇叭 | Horn |
| 116 | A240600000143 | 转速传感器YT552K | Speed Sensor YT552K |
| 117 | A240600000159 | 长度/角度传感器QZK-60 | Length/angle sensor |
| 118 | A240600000162 | 水位传感器 | Water Level Sensor |
| 119 | A241200000272 | 脚踏开关 | Pedal switch |
| 120 | A241200000902 | 取力器开关JK942D | Power Take-Off Switch JK942D |
| 121 | A249900000826 | 倒车蜂鸣器 | Backup Buzzer 3729050-116-24V |
| 122 | A249900001070 | 中心导电环GL-3-17A | Central conductive ring GL-3-17A |
| 123 | A249900001417 | 电源总开关控制盒KH206 | Control box of power supply master switch KH206 |
| 124 | A250100000043 | 液位计 | Liquid level gauge |
| 125 | A250100000145 | 全方向水平仪SC0-3 | Level meter |
| 126 | A250201000019 | 转速表YT501D3-JS-24V | Tachometer YT501D3-JS-24V |
| 127 | A250202000028 | 机油压力表YT308D-24V | Engine Oil Pressure Gauge |
| 128 | A250202000029 | 电压表YT312D-A-24V | Voltage Meter YT312D-A-24V |
| 129 | A250204000022 | 水温表YT302D-24V | Coolant Temperature Meter |
| 130 | A250206000003 | 双针气压表YT311D-24V | Dual-Needle Pressure Gauge |
| 131 | A250209000005 | 燃油表YT304D-24V | Fuel Gauge YT304D-24V |
| 132 | A31C210900530 | O形圈109×5.3GB3452.1 | O-ring 109×5.3GB3452.1 |
| 133 | A810103060128 | 传动轴F102+4-P7P8-11 | Transmission Shaft |
| 134 | A880803040002 | 导向环CRPGR160×155×25-PF | Guide Ring |
| 135 | A880803040004 | 导向环180×185×25-PF Skf | Guide Ring |
| 136 | A880806030004 | MD密封圈160×135×25.4 | MD seal ring 160×135×25.4 |
| 137 | A880806030018 | GS密封圈180×195.1×6.3 | GS seal ring 180×195.1×6.3 |
| 138 | A880808070039 | PWD防尘圈80×90×6×6.8 | PWD Dust Ring 80×90×6×6.8 |
| 139 | B220301000288 | 三联齿轮泵PGP365B478**AB20-11/PGP3 Parker | Trilink gear pump PGP365B478**AB20-11/PGP3 Parke |
| 140 | B220401000702 | 平衡阀 | Banlance valve |
| 141 | B220401000703 | 平衡阀 | Banlance valve |
| 142 | B220401000777 | 换向阀5000-A171 | Electromagnetic Steering Valve |
| 143 | B220401001223 | 伸缩平衡阀STO545 | Balanced valve STO545 |
| 144 | B220501000269 | 齿轮马达 | Gear pump |
| 145 | B222100000063 | 机油滤清器LF9009 | Oil filter LF9009 |
| 146 | B222100000116 | 滤芯0330D010BN3HC | Filter core 0330D010BN3HC |
| 147 | B222100000345 | 冷却器滤芯WF2073SH | Cooler cartridge WF2073SH |
| 148 | B222100000424 | FF5488柴油精滤芯 | Diesel Fine Filter Core FF5488 |
| 149 | B222100000751 | 柴油滤清器FS19816-B-AM | Diesel Fuel Cleaner |
| 150 | B222200000021 | 双向液压锁ST0389 | Dual-Direction Hydraulic Lock |
